IE5/YE5 Series High Efficient Three-Phase Asynchronous Motor

IE5/YE5 Series High Efficient Three-Phase Asynchronous Motor

We can also provide customized services according to your requirements.

Parameters:

Power range 0.75kw ~ 355kw (Customizable).
Voltage: 380V (Customizable).
Frequency: 50Hz (or 60Hz)
We also have YE2/YE3/YE4.

Send Mail Chat Now

Introduction
Parameters
Related Products
Leave Comments

Introduction

This series of motors is a super-efficient and energy-saving three-phase asynchronous motor independently developed by our company. The cooling method is IC411. The motor performance complies with GB/T755 "Rating and Performance of Rotating Electrical Machines", and the efficiency value meets the 1st-level energy efficiency standard of GB18613-2020, which is consistent with IE5 in the international standard IEC60034-30 "Energy Efficiency Classes for Single-Speed Three-phase Induction Motors". This series of products can completely replace the Y, YGM, YGM2, YE2, YE3, and YE4 series of low-voltage three-phase asynchronous motors.

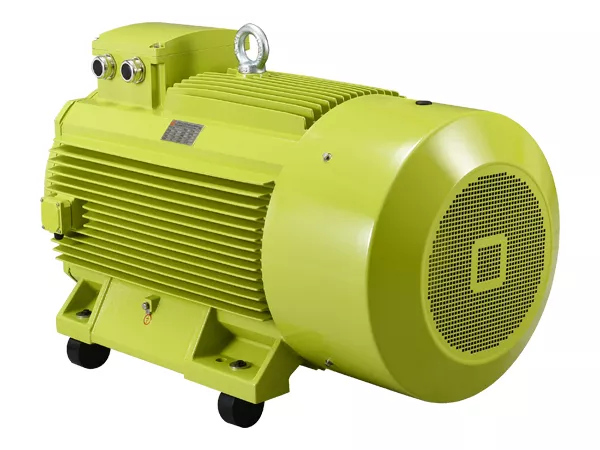

YE5 (1).webp

Advantages:

The YE5 series of super high-efficiency three-phase asynchronous motors feature excellent performance, high efficiency, energy conservation, large temperature rise margin, long service life, good performance, low vibration, superior starting performance, attractive appearance, and high reliability.

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

Type	Rated power(kw)	Rated voltage(v)	Rated current(A)	Rated speed(r/min)	Efficiency(n%)	Power factor(cosΦ)%	Stall torque Rated torque Tst/Tn	Stalled rotor current Rated current Ist/In	Maximum torque Rated torque Tmax/Tn	Rated torque(N.m)	Noise dB(A)	Weight(kg)
Synchronous Speed 3000r/min
YE5-80M1-2	0.75	380	1.6	2880	86.3	0.83	2.2	8.5	2.3	2.4	56	20
YE5-80M2-2	1.1	380	2.3	2880	87.8	0.83	2.2	8.5	2.3	3.5	59	21
YE5-90S-2	1.5	380	3	2890	88.9	0.85	2.2	9	2.3	4.8	59	26
YE5-90L-2	2.2	380	4.3	2890	90.2	0.86	2.2	9	2.3	7	64	30
YE5-100L-2	3	380	5.8	2910	91.1	0.87	2.2	9.5	2.3	9.6	64	38
YE5-112M-2	4	380	7.5	2910	91.8	0.88	2.2	9.5	2.3	12.8	65	51
YE5-132S1-2	5.5	380	10.3	2945	92.6	0.88	2	9.5	2.3	17.5	71	76
YE5-132S2-2	7.5	380	13.7	2940	93.3	0.89	2	9.5	2.3	23.9	71	82
YE5-160M1-2	11	380	20	2950	94	0.89	2	9.5	2.3	35	73	139
YE5-160M2-2	15	380	27.1	2950	94.5	0.89	2	9.5	2.3	47.8	73	152
YE5-160L-2	18.5	380	33.3	2950	94.9	0.89	2	9.5	2.3	58.9	76	171
YE5-180M-2	22	380	39.5	2965	95.1	0.89	2	9.5	2.3	70	76	230
YE5-200L1-2	30	380	53.6	2970	95.5	0.89	2	9	2.3	95.5	76	281
YE5-200L2-2	37	380	65.9	2975	95.8	0.89	2	9	2.3	117.8	78	301
YE5-225M-2	45	380	80	2975	96	0.89	2	9	2.3	143.3	78	354
YE5-250M-2	55	380	97.6	2980	96.2	0.89	2	9	2.3	175.1	79	496
YE5-280S-2	75	380	133	2980	96.5	0.89	1.8	8.5	2.3	238.8	80	578
YE5-280M-2	90	380	159	2980	96.6	0.89	1.8	8.5	2.3	286.5	80	665
YE5-315S-2	110	380	194	2975	96.8	0.89	1.8	8.5	2.3	350.2	88	870
YE5-315M-2	132	380	233	2975	96.9	0.89	1.8	8.5	2.3	420.2	88	960
YE5-315L1-2	160	380	282	2975	97	0.89	1.8	8.5	2.2	509.3	88	1045
YE5-315L2-2	185	380	325	2975	97.1	0.89	1.8	8.5	2.2	588.9	88	1095
YE5-315L3-2	200	380	351	2975	97.2	0.89	1.8	8.5	2.2	636.7	88	1095
YE5-355M1-2	220	380	382	2985	97.2	0.9	1.6	8.5	2.2	700.3	92	1650
YE5-355M2-2	250	380	429	2985	97.2	0.91	1.6	8.5	2.2	795.8	92	1710
YE5-355L1-2	280	380	481	2985	97.2	0.91	1.6	8.5	2.2	891.3	92	1810
YE5-355L2-2	315	380	541	2985	97.2	0.91	1.6	8.5	2.2	1003	92	1860
YE5-4001-2	355	380	617	2985	97.2	0.9	0.9	8.6	1.8	1130	97	2710
YE5-4002-2	400	380	695	2985	97.2	0.9	0.9	8.6	1.8	1273	97	2770
YE5-4003-2	450	380	782	2985	97.2	0.9	0.8	8.6	1.8	1433	97	2820
YE5-4004-2	500	380	868	2985	97.2	0.9	0.8	8.6	1.8	1592	97	3380
YE5-4005-2	560	380	962	2985	97.2	0.91	0.8	8.7	1.8	1783	97	3645
YE5-4006-2	630	660	623	2985	97.2	0.91	0.8	8.7	1.8	2006	97	3730
Synchronous Speed 1500r/min
YE5-80M-4	0.75	380	1.7	1435	88.2	0.74	2.3	8.5	2.3	4.8	57	20
YE5-90S-4	1.1	380	2.5	1440	89.5	0.75	2.3	8.5	2.3	7	57	25
YE5-90L-4	1.5	380	3.3	1440	90.4	0.76	2.3	9	2.3	9.6	61	30
YE5-100L1-4	2.2	380	4.6	1450	91.4	0.79	2.3	9	2.3	14	65	38
YE5-100L2-4	3	380	6.2	1450	92.1	0.8	2.3	9.5	2.3	19	69	42
YE5-112M-4	4	380	8.2	1450	92.8	0.8	2.2	9.5	2.3	25.5	69	55
YE5-132S-4	5.5	380	11.2	1470	93.4	0.8	2	9.5	2.3	35	69	87
YE5-132M-4	7.5	380	15	1470	94	0.81	2	9.5	2.3	47.8	73	99
YE5-160M-4	11	380	21.3	1475	94.6	0.83	2	9.5	2.3	70	73	139
YE5-160L-4	15	380	28.5	1475	95.1	0.84	2	9.5	2.3	95.5	73	154
YE5-180M-4	18.5	380	34.7	1480	95.3	0.85	2	9.5	2.3	117.8	73	220
YE5-180L-4	22	380	41.2	1480	95.5	0.85	2	9.5	2.3	140.1	73	240
YE5-200L-4	30	380	55.9	1485	95.9	0.85	2	9	2.3	191	74	286
YE5-225S-4	37	380	68.8	1485	96.1	0.85	2	9	2.3	235.6	76	356
YE5-225M-4	45	380	83.5	1485	96.3	0.85	2	9	2.3	286.5	78	369
YE5-250M-4	55	380	101	1485	96.5	0.86	2	9	2.3	350.1	78	450
YE5-280S-4	75	380	135	1490	96.7	0.87	2	8.5	2.3	477.2	83	619
YE5-280M-4	90	380	160	1490	96.9	0.88	2	8.5	2.3	573	83	688
YE5-315S-4	110	380	194	1485	97	0.89	1.8	8.5	2.2	700.3	83	870
YE5-315M-4	132	380	232	1485	97.1	0.89	1.8	8.5	2.2	840.4	83	1070
YE5-315L1-4	160	380	278	1485	97.2	0.9	1.8	8.5	2.2	1019	85	1160
YE5-315L2-4	185	380	321	1485	97.3	0.9	1.8	8.5	2.2	1178	85	1245
YE5-315L3-4	200	380	347	1485	97.4	0.9	1.8	8.5	2.2	1273	85	1245
YE5-355M1-4	220	380	381	1490	97.4	0.9	1.8	8.5	2.2	1401	85	1650
YE5-355M2-4	250	380	433	1490	97.4	0.9	1.8	8.5	2.2	1592	85	1806
YE5-355L1-4	280	380	485	1490	97.4	0.9	1.8	8.5	2.2	1783	92	1820
YE5-355L2-4	315	380	546	1490	97.4	0.9	1.8	8.5	2.2	2006	92	1890
YE5-4001-4	355	380	629	1490	97.4	0.88	0.9	8.5	1.8	2260	92	2925
Ye5-4002-4	400	380	709	1490	97.4	0.88	0.9	8.5	1.8	2547	92	3060
Ye5-4003-4	450	380	798	1490	97.4	0.88	0.8	8.5	1.8	2865	92	3090
YE5-4004-4	500	380	886	1490	97.4	0.88	0.8	8.5	1.8	3183	93	3660
YE5-4005-4	560	380	982	1490	97.4	0.89	0.8	8.6	1.8	3565	93	3700
YE5-4006-4	630	660	636	1490	97.4	0.89	0.8	8.6	1.8	4011	93	3780
Synchronous Speed 1000r/min
YE5-90S-6	0.75	380	1.9	950	85.7	0.7	2.1	7.5	2.1	7.2	67	34
YE5-90L-6	1.1	380	2.7	950	87.2	0.7	2.1	7.5	2.1	10.5	67	36
YE5-100L-6	1.5	380	3.6	955	88.4	0.71	2.1	7.5	2.1	14.3	74	42
YE5-112M-6	2.2	380	5.2	955	89.7	0.71	2	7.5	2.1	21	77	51
YE5-132S-6	3	380	7.1	970	90.6	0.71	2	7.5	2.1	28.7	69	62
YE5-132M1-6	4	380	9.2	970	91.4	0.72	2	8	2.1	38.2	69	77
YE5-132M2-6	5.5	380	12.6	970	92.2	0.72	2	8	2.1	52.5	69	88
YE5-160M-6	7.5	380	16.1	980	92.9	0.76	2	8	2.1	71.6	73	143
YE5-160L-6	11	380	23.2	980	93.7	0.77	2	8.5	2.1	105.1	73	163
YE5-180L-6	15	380	30.2	985	94.3	0.8	2	8.5	2.1	143.3	73	220
YE5-200L1-6	18.5	380	37.1	985	94.6	0.8	2	8.5	2.3	176.7	73	268
YF5-200L2-6	22	380	43.5	985	94.9	0.81	2	8.5	2.1	210.1	73	295
YE5-225M-6	30	380	58.3	990	95.3	0.82	2	8.5	2.1	286.5	74	326
YE5-250M-6	37	380	70.8	990	95.6	0.83	2	8.3	2.1	353.3	76	429
YE5-280S-6	45	380	86	990	95.8	0.83	2	8.5	2	429.8	78	537
YE5-280M-6	55	380	104	990	96	0.84	2	8.5	2	525.3	78	605
YE5-315S-6	75	380	141	990	96.3	0.84	1.6	8	2	716.3	83	925
YE5-315M-6	90	380	167	990	96.5	0.85	1.6	8	2	859.5	83	950
YE5-315L1-6	110	380	204	990	96.6	0.85	1.6	8	2	1051	83	1100
YE5-315L2-6	132	380	241	990	96.8	0.86	1.6	8	2	1261	83	1240
YE5-355M1-6	160	380	292	990	96.9	0.86	1.6	8	2	1528	85	1640
YE5-355M2-6	185	380	337	990	97	0.86	1.6	8	2	1767	85	1690
YE5-355M3-6	200	380	364	990	97	0.86	1.6	8	2	1910	85	1760
YE5-355L1-6	220	380	401	990	97	0.86	1.6	8	2	2101	85	1840
YE5-355L2-6	250	380	455	990	97	0.86	1.6	8	2	2387	85	1930
YE5-355L3-6	315	380	602	995	97	0.82	0.9	7.9	1.8	3008	91	2915
YE5-4001-6	355	380	678	995	97	0.82	0.9	7.9	1.8	3390	91	3030
YE5-4002-6	400	380	755	995	97	0.83	0.9	8	1.8	3820	92	3440
YE5-4003-6	450	380	849	995	97	0.83	0.8	8	1.8	4298	92	3605
YE5-4004-6	500	660	543	995	97	0.83	0.8	8	1.8	4775	92	3810
Synchronous Speed 750r/min
YE5-100L1-8	0.75	380	2.1	710	82	0.66	2	7	2	9.6	59	51
YE5-100L2-8	1.1	380	3	710	84	0.67	2	7	2	14	59	52
YE5-112M-8	1.5	380	3.9	710	85.5	0.69	2	7	2	19.1	61	53
YE5-132S-8	2.2	380	5.5	710	87.2	0.7	1.8	7.5	2	28.2	64	63
YE5-132M-8	3	380	7.4	710	88.4	0.7	1.8	7.8	2	38.2	64	76
YE5-160M1-8	4	380	9.6	720	89.4	0.71	1.8	7.9	2	50.9	68	135
YE5-160M2-8	5.5	380	12.8	720	90.4	0.72	1.8	8.1	2	70	68	145
YE5-160L-8	7.5	380	16.9	720	91.3	0.74	1.8	7.8	2	95.5	68	154
YE5-180L-8	11	380	24.5	730	92.2	0.74	1.8	7.9	2	140.1	70	207
YE5-200L-8	15	380	32.7	730	92.9	0.75	1.8	8	2	191	73	270
YE5-225S-8	18.5	380	40.2	730	93.3	0.75	1.8	8.1	2	235.6	73	289
YE5-225M-8	22	380	47	730	93.6	0.76	1.8	8.3	2	280.1	73	341
YE5-250M-8	30	380	62.9	730	94.1	0.77	1.8	7.9	2	382	75	400
YE5-280S-8	37	380	76.3	735	94.4	0.78	1.8	7.9	2	471.1	76	559
YE5-280M-8	45	380	92.6	735	94.7	0.78	1.8	7.9	2	573	76	672
YE5-315S-8	55	380	110	740	94.9	0.8	1.6	8.2	2	700.3	82	1000
YE5-315M-8	75	380	149	740	95.3	0.8	1.6	7.6	2	955	82	1100
YE5-315L1-8	90	380	177	740	95.5	0.81	1.6	7.7	2	1146	82	1160
YE5-315L2-8	110	380	216	740	95.7	0.81	1.6	7.7	2	1401	82	1280
YE5-355M1-8	132	380	258	740	95.9	0.81	1.6	7.7	2.02.0	1681	89	1640
YE5-355M2-8	160	380	308	740	96.1	0.82	1.6	7.7	2	2037	89	1740
YE5-355L1-8	185	380	356	740	96.2	0.82	1.6	7.7	2	2356	89	1840
YE5-355L2-8	200	380	385	740	96.3	0.82	1.6	7.7	1.8	2547	89	1950
YE5-355L3-8	250	380	493	740	96.3	0.8	1.1	7.6	1.8	3183	89	2885
YE5-4001-8	315	380	621	740	96.3	0.8	0.9	7.6	1.8	4011	89	3080
YE5-4002-8	355	380	700	745	96.3	0.8	0.9	7.6	1.8	4520	91	3680
YE5-4003-8	400	660	454	745	96.3	0.8	0.9	7.6		5093	91	3890
Synchronous Speed 600r/min
YE5-315S-10	45	380	97.2	590	93.8	0.75	1.5	6.2	2	716.2	82	1000
YE5-315M-10	55	380	119	590	93.8	0.75	1.5	5.8	2	875.4	82	1110
YE5-315L1-10	75	380	159	590	94.4	0.76	1.5	5.9	2	1194	82	1160
YE5-315L2-10	90	380	188	590	94.4	0.77	1.5	6	2	1433	82	1280
YE5-355M1-10	110	380	226	590	94.7	0.78	1.45	6	2	1433	89	1650
YE5-355M2-10	132	380	270	590	95.2	0.78	1.45	6	2	1751	89	1760
YE5-355L1-10	160	380	327	590	95.2	0.78	1.45	6	2	2547	89	1920
YE5-4001-10	200	380	428	590	95.9	0.74	1.1	7	1.8	3183	89	2956
YE5-4002-10	250	380	535	590	95.9	0.74	1.1	7	1.8	3979	89	3090
YE5-4003-10	315	380	648	595	95.9	0.77	1.1	7.1	1.8	5014	91	3734
YE5-4004-10	355	380	730	595	95.9	0.77	0.9	7.1	1.8	5650	91	3986
