MVE Series Three Phase Asynchronous Vibration Motor

MVE Series Three Phase Asynchronous Vibration Motor

We can also provide customized services according to your requirements.

Parameters:

Vibration Force: 0.03Kn-55Kn
Rated Power: 10W-3.5KW
Phase: Single Phase, Three phase
Power Supply: AC, DC

Send Mail Chat Now

Introduction
Parameters
Related Products
Leave Comments

Introduction

MVE (11).webp

MVE series vibrator motor is a European standard product, which uses high-strength zinc-aluminum alloy as raw material and is processed by high-precision

aluminum die-casting process. Significantly reduce the weight of the motor and increase the motors ability to handle materials. MVE series single and

three-phase standard vibration motor with light weight, small volume, exciting force adjustment, insulation grade and protective level of higher features.

Products can replace ITALVIBRAS (MARTIN), VIMARC, INVICTA, URAS and other foreign companies produce vibration motor.

Protection grade IP65, integrated seal structure, has the advantages of oil resistance, shock resistance, oxidation resistance and so on. Bearings are imported

brands, after 10,000 experiments, high temperature resistance and precision noise reduction. The excitation force can be adjusted steplessly to meet various

equipment and work requirements.

MVE Series Vibration Motor Model:

With models: MVE series three-phase vibration motor;

MVE series single-phase vibration motor;

MVE-DC series DC vibration motor;

MVE-H series high frequency vibration motor;

MVE-D series of explosion-proof vibration motor;

MVE DC brushless aluminum alloy vibration motor;

MVE DC brushless stainless steel vibration motor;

MVE DC brushed aluminum alloy vibration motor;

Micro DC brushless aluminum alloy vibration motor;

Micro DC Brushed Aluminum Alloy Vibration Motor;

MVE (5).webp

MVE Series Vibration Motor Function:

MVE External Electric Motovibrators can be used as flow aids, on hoppers or silos to improve material discharge, or as drives on vibrating machines for

several purposes such as conveying, screening, sizing, or compacting in a variety of industries.

When the MVE is switched on a sinusoidal centrifugal force is provided by rotation of the eccentric weights. With only one MVE fitted on a vibrating

machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.

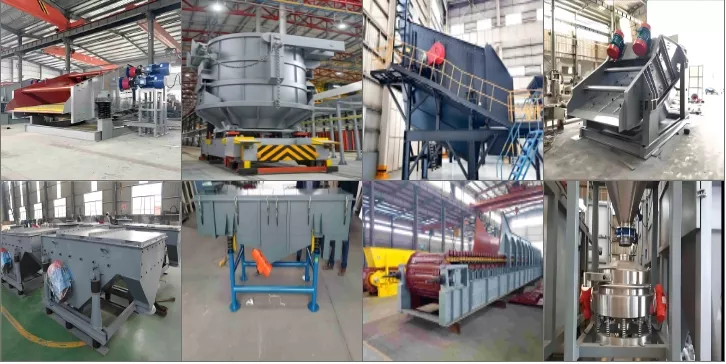

MVE Series Vibration Motor Application:

Widely used in power feeding, food, chemical, metallurgy, building materials, coal, mining, metallurgy, light industry, cement, railway, port and other

industries for vibration feeding, vibration conveying, vibration beneficiation, vibration falling sand, vibration screening and silos Anti-clog, etc.

MVE (6).webp

MVE Series Vibration Motor Features:

Reasonable design and compact size, light weight.

Totally enclosed structure, can be applied to the dusty applications without explosion-proof requirements.

High efficiency

Low noise

Standard or customizable installation dimensions and specifications

Optional PTC130 temperature sensor

MVE Series Vibration Motor Main Use Conditions:

Rated Voltage: 380V for three-phase vibration motor; 220V for single-phase vibration motor. Or 230/400V，230/460V.

DC voltage: 12V 24V 220V

Rated Frequency: 50HZ/ 60HZ

Insulation Grade: H, connecting line cavity F

Protection Grade: IP65 Duty: S1

Excitation Force Adjustment Range: 0-The maximum

Excitation Force: Single-phase vibration motor :0—800kg; Three-phase vibration motor: 0—13000kg

MVE Series Vibration Motor Manufacturer:

Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds

of vibrating equipment virtually in all industries. The motor vibrators come with single phase, tree-phase or DC motor with ATEX ExII3D and ETL, Class II,

Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.

Installation Dimension:

MVE (1).webp

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

Standard MVE Vibration Motor Three-Phase 2/4/6/8P

Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 2-Pole
Model	Force		Speed	Power	Current	Weight	Frame No.	Installation Dimensions(MM)												Cable Gland
Model	Kg	kN	(RPM)	(KW)	(A)	(KG)	Frame No.	A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
MVE60/3- 10	71	0.7	2900	0.03KW	0.16	4.38	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
MVE100/3- 10	99	1	2900	0.04KW	0.19	4.6	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
MVE200/3- 20	198	2	2900	0.09KW	0.35	7.6	20	62-74	106	231	131	159	15	9	64	121	123	54	112	M16*1.5
MVE300/3- 30	311	3	2900	0.16KW	0.52	9.5	30	90	125	253	155	175	15	13	79	142	163	45	131	M20*1.5
MVE400/3- 30	400	4	2900	0.2KW	0.58	10.3	30	90	125	279	155	175	15	13	79	142	163	58	131	M20*1.5
MVE500/3- 40	516	5	2900	0.37KW	0.96	15.3	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE700/3- 40	750	7	2860	0.45KW	1.25	15.5	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE800/3- 50	788	8	2900	0.55KW	1.45	22.5	50	120	170	321	208	210	22	17	94	180	205	58	170	M20*1.5
MVE1200/3- 50	1018	10	2900	0.75KW	1.85	23.1	50	120	170	321	208	210	22	17	94	180	205	58	170	M20*1.5
MVE1300/3- 50	1386	13	2900	1.1KW	2.44	24.5	50	120	170	321	208	210	22	17	94	180	205	58	170	M20*1.5
MVE1600/3- 60	1571	16	2800	1.25KW	2.94	56.2	60	140	190	416	229	267	30	17	125	232	256	80	222	M25*1.5
MVE2000/3- 60	2033	20	2800	2KW	3.75	57	60	140	190	416	229	267	30	17	125	232	256	80	222	M25*1.5
MVE2300/3- 60	2310	23	2800	2KW	4.44	57.6	60	140	190	416	229	267	30	17	125	232	256	80	222	M25*1.5
MVE3200/3- 75	3250	32	2870	2.2KW	5.3	112.8	75	155	255	518	302	326	35	25	155	296	308	105	290	M32*1.5
MVE4000/3- 75	4030	40	2870	2.3KW	5.3	113.8	75	155	255	518	302	326	35	25	155	296	308	105	290	M32*1.5
MVE5000/3- 75	5070	50	2850	3.5KW	7.22	115.2	75	155	255	518	302	326	35	25	155	296	308	105	290	M32*1.5
Amax(△)								200	320	611	387	422	40	28	202	395	367	122	380	M32*1.5
MVE6500/3- 85	6500	65	2930	4.2KW	9.4	211	85	200	320	611	387	422	40	28	202	395	367	122	380	M32*1.5
MVE9000/3- 85	9030	90	2900	7.2KW	17.8	228.4	85	125	380	632	452	425	40	39	205	395	388	122	380	M32*1.5
MVE12000/3- 90	12245	120	2910	10KW	19	267.7	90	125	380	632	452	425	40	39	205	395	388	122	380	M32*1.5
MVE15000/3- 90	15204	150	2900	15KW	27.5	325	90
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 4-Pole
Model	Force		Speed	Power	Current	Weight	Frame No.	Installation Dimensions(MM)												Cable Gland
Model	Kg	kN	(RPM)	(KW)	(A)	(KG)	Frame No.	A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
MVE40/15- 10	32	0.3	1450	0.03KW	0.26	4.6	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
MVE90/15- 20	90	0.9	1450	0.04KW	0.31	7	20	62-74	106	231	131	159	15	9	64	121	123	54	112	M20*1.5
MVE200/15- 30	183	2	1450	0.06KW	0.49	11.5	30	90	125	279	155	175	15	13	79	142	163	58	131	M20*1.5
MVE250/15- 30	257	2.5	1440	0.07KW	0.54	13.1	30	90	125	303	155	175	15	13	79	142	163	70	131	M20*1.5
MVE300/15- 30	305	3	1420	0.08KW	0.62	13.5	30	90	125	303	155	175	15	13	79	142	163	70	131	M20*1.5
MVE400/15- 40	388	4	1450	0.15KW	0.84	19	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE500/15- 40	518	5	1420	0.25KW	1.06	20	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE700/15- 50	693	7	1440	0.37KW	1.32	28	50	120	170	391	208	210	22	17	94	180	205	93	170	M20*1.5
MVE800/15- 50	807	8	1420	0.4KW	1.36	29.5	50	120	170	391	208	210	22	17	94	180	205	93	170	M20*1.5
MVE1100/15- 50	1045	11	1400	0.4KW	1.4	35	50	120	170	451	208	210	22	17	94	180	205	123	170	M20*1.5
MVE1400/15- 60	1406	14	1400	0.45KW	1.78	69	60	140	190	460	229	267	30	17	125	232	256	102	222	M25*1.5
MVE1700/15- 60	1757	17	1400	0.75KW	2.16	68.5	60	140	190	460	229	267	30	17	125	232	256	102	222	M25*1.5
MVE2400/15- 60	2420	24	1400	1KW	3.2	76.5	60	140	190	514	229	267	30	17	125	232	256	129	222	M25*1.5
MVE2500/15- 70	2500	25	1430	1.2KW	3.08	97.5	70	155	225	501	272	299	40	22	145	266	273	114	250	M25*1.5
MVE3000/15- 70	3065	30	1430	1.5KW	3.68	103	70	155	225	553	272	299	40	22	145	266	273	140	250	M25*1.5
MVE3800/15- 75	3830	38	1430	1.72KW	4.15	130.4	75	155	255	588	302	326	35	25	155	296	308	140	290	M32*1.5
MVE4300/15- 75	4312	43	1420	1.94KW	4.5	134.3	75	155	255	588	302	326	35	25	155	296	308	140	290	M32*1.5
MVE5500/15- 80	5586	55	1440	2.2KW	6.5	184.5	80	180	280	603	332	360	37	26	168	320	343	130	310	M32*1.5
Amax(△)								200	320	611	387	422	40	28	202	395	367	122	380	M32*1.5
MVE7200/15- 85	7191	72	1460	3KW	8.5	253	85	200	320	611	387	422	40	28	202	395	367	122	380	M32*1.5
MVE9000/15- 85	8933	90	1450	5.8KW	13.4	268.6	85	125	380	712	452	425	40	39	205	395	388	162	380	M32*1.5
MVE10000/15- 90	10152	100	1460	6.3KW	14.4	329	90	140	440	890	530	484	37	45	232	446	470	210	424	M32*1.5
MVE11500/15- 100	11778	116	1460	8.4KW	15.2	445	100	140	440	890	530	484	37	45	232	446	470	210	424	M32*1.5
MVE14500/15- 100	14465	141	1460	8.9KW	18.5	460	100
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 6-Pole
Model	Force		Speed	Power	Current	Weight	Frame No.	Installation Dimensions(MM)												Cable Gland
Model	Kg	kN	(RPM)	(KW)	(A)	(KG)	Frame No.	A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
MVE50/1- 30	51	0.5	960	0.03KW	0.38	10.9	30	90	125	279	155	175	15	13	79	142	163	58	131	M20*1.5
MVE100/1- 30	105	1	950	0.04KW	0.42	13	30	90	125	303	155	175	15	13	79	142	163	70	131	M20*1.5
MVE200/1- 40	185	1.8	950	0.05KW	0.48	18.6	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE300/1- 50	308	3	950	0.16KW	0.67	29.3	50	120	170	391	208	210	22	17	94	180	205	93	170	M20*1.5
MVE400/1- 50	408	4	920	0.25KW	1.22	31.5	50	120	170	451	208	210	22	17	94	180	205	123	170	M20*1.5
MVE500/1- 50	510	5	910	0.37KW	1.22	35.2	50	120	170	451	208	210	22	17	94	180	205	123	170	M20*1.5
MVE800/1- 60	781	7.8	910	0.45KW	1.42	71	60	140	190	460	229	267	30	17	125	232	256	102	222	M25*1.5
MVE1100/1- 60	1067	11	910	0.55KW	1.42	91	60	140	190	514	229	267	30	17	125	232	256	129	222	M25*1.5
MVE1400/1- 60	1387	14	920	0.7KW	1.95	88	60	140	190	580	229	267	30	17	125	232	256	162	222	M25*1.5
MVE1600/1- 60	1600	16	910	0.75KW	2.06	93	60	140	190	580	229	267	30	17	125	232	256	162	222	M25*1.5
MVE1620/1- 70	1622	16.2	965	0.75KW	2.4	108.2	70	155	225	553	272	299	40	22	145	266	273	140	250	M25*1.5
MVE2100/1- 70	2026	21	950	1.1KW	3	115.5	70	155	225	613	272	299	40	22	145	266	273	170	250	M25*1.5
MVE2600/1- 75	2573	26	950	1.5KW	4.1	147.1	75	155	255	648	302	326	35	25	155	296	308	170	290	M32*1.5
MVE3000/1- 75	2931	30	945	1.7KW	4.5	152.2	75	155	255	648	302	326	35	25	155	296	308	170	290	M32*1.5
MVE3800/1- 80	3762	38	970	2KW	5.5	206.5	80	180	280	683	332	360	37	26	168	320	343	170	310	M32*1.5
MVE4700/1- 80	4682	47	960	2.35KW	6.5	219.8	80	180	280	733	332	360	37	26	168	320	343	195	310	M32*1.5
Amax(△)								200	320	691	387	422	40	28	202	395	367	162	380	M32*1.5
MVE5200/1- 85	5266	52	980	2.6KW	6.92	285.2	85	200	320	691	387	422	40	28	202	395	367	162	380	M32*1.5
MVE6500/1- 85	6582	65	980	2.9KW	7.76	293.4	85	200	320	791	387	422	40	28	202	395	367	212	380	M32*1.5
MVE8000/1- 85	8018	80	975	4.5KW	12.6	326.2	85	200	320	791	387	422	40	28	202	395	367	212	380	M32*1.5
MVE9000/1- 85	9098	90	975	5KW	13.2	333	85	125	380	908	452	425	40	39	205	395	388	260	380	M32*1.5
MVE10000/1- 90	10106	100	980	6KW	14	394	90	125	380	948	452	425	40	39	205	395	388	280	380	M32*1.5
MVE13000/1- 90	13276	130	978	7KW	16.4	418.3	90	140	480	980	570	542	48	45	268	510	560	210	490	M32*1.5
MVE15000/1- 105	15077	144	980	9KW	18	686.5	105	140	480	1060	570	542	48	45	268	510	560	250	490	M32*1.5
MVE17500/1- 105	17855	176	980	11KW	21	744	105	140	480	1060	570	542	48	45	268	510	560	250	490	M32*1.5
MVE19500/1- 105	20056	199	980	12KW	24	768	105	140	520	1130	610	594	42	45	297	560	560	285	530	M32*1.5
MVE22000/1- 110	22730	223	980	16KW	28	916	110	140	520	1130	610	594	42	45	297	560	560	285	530	M32*1.5
MVE25000/1- 110	25879	250	980	16KW	28	994	110	140	600	1167	700	635.5	45	45	320	610	585	291	600	M32*1.5
MVE30000/1- 120	30800	300	980	23KW	52.5	1231	120	130	630	1278	740	704	55	45	350	660	690	294	631	M32*1.5
MVE40000/1- 130	41252	400	980	30KW	62.2	1765	130
Standard MVE Vibration Motor (Aluminum Alloy) 3-Phase 8-Pole
Model	Force		Speed	Power	Current	Weight	Frame No.	Installation Dimensions(MM)												Cable Gland
Model	Kg	kN	(RPM)	(KW)	(A)	(KG)	Frame No.	A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
MVE150/075- 40	105	1	710	0.08KW	0.38	21.4	40	105	140	334	168	196	22	13	92	169	178	78	158	M20*1.5
MVE250/075- 50	180	2	710	0.12KW	0.9	29.5	50	120	170	391	208	210	22	17	94	180	205	93	170	M20*1.5
MVE400/075- 50	264	2.5	710	0.12KW	0.9	34.2	50	120	170	451	208	210	22	17	94	180	205	123	170	M20*1.5
MVE650/075- 60	431	4.5	710	0.2KW	1.2	64.7	60	140	190	460	229	267	30	17	125	232	256	102	222	M25*1.5
MVE900/075- 60	589	6	710	0.45KW	1.23	76	60	140	190	514	229	267	30	17	125	232	256	129	222	M25*1.5
MVE1300/075- 70	941	9	710	0.56KW	2.2	99.8	70	155	225	553	272	299	40	22	145	266	273	140	250	M25*1.5
MVE2100/075- 75	1468	15	720	1KW	2.81	150.4	75	155	255	648	302	326	35	25	155	296	308	170	290	M32*1.5
MVE3100/075- 80	2116	21	720	1.4KW	4.5	212.2	80	180	280	683	332	360	37	26	168	320	343	170	310	M32*1.5
MVE3800/075- 80	2578	25	720	1.75KW	6	230.2	80	180	280	733	332	360	37	26	168	320	343	195	310	M32*1.5
Amax(△)								200	320	691	387	422	40	28	202	395	367	162	380	M32*1.5
MVE4200/075- 85	2962	30	725	2.1KW	7.15	284.5	85	200	320	691	387	422	40	28	202	395	367	162	380	M32*1.5
MVE5300/075- 85	3759	35	725	2.7KW	8	305	85	200	320	791	387	422	40	28	202	395	367	212	380	M32*1.5
MVE6500/075- 85	4588	45	725	3.65KW	8.78	324.2	85	125	380	948	452	425	40	39	205	395	388	280	380	M32*1.5
MVE10000/075- 90	6935	70	730	5.1KW	13.5	438	90	140	440	1020	530	484	37	45	232	446	470	275	424	M32*1.5
MVE12000/075- 100	9133	87	735	6.1KW	13.5	571	100	140	480	1060	570	542	48	45	268	510	560	250	490	M32*1.5
MVE14000/075- 105	11581	114	735	7.4KW	19	751	105	140	480	1120	570	542	48	45	268	510	560	280	490	M32*1.5
MVE17000/075- 105	13852	135	735	8.4KW	20	812	105	140	520	1130	610	594	42	45	297	560	560	285	530	M32*1.5
MVE22000/075- 110	18388	180	740	10KW	28	982	110

Standard MVE Vibration Motor (Aluminum Alloy) Single-Phase 2/4P

Model	Force		Speed	Power	Current	Weight	Frame No.	Installation Dimensions(MM)												Cable Gland
Model	Kg	kN	(RPM)	(KW)	(A)	(KG)	Frame No.	A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
MVE60/3M-10	66	0.7	2940	0.08KW	0.43	4.2	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
MVE100/3M-10	99	1	2940	0.1KW	0.54	4.6	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
MVE200/3M-20	197	2	2940	0.13KW	0.71	6.8	20	68.5	106	231	131	159	15	9	64	121	123	54	112	M16*1.5
MVE300/3M-30	311	3	2940	0.29KW	1.58	9.8	30	90	125	253	155	175	15	13	79	142	163	45	131	M20*1.5
MVE400/3M-30	400	4	2940	0.31KW	1.68	10.3	30	90	125	279	155	175	15	13	79	142	163	58	131	M20*1.5
MVE40/15M-10	32	0.3	1450	0.03KW	0.27	4.6	10	62-74	106	211	130	136	12	9	48	94	121	45	86	M16*1.5
