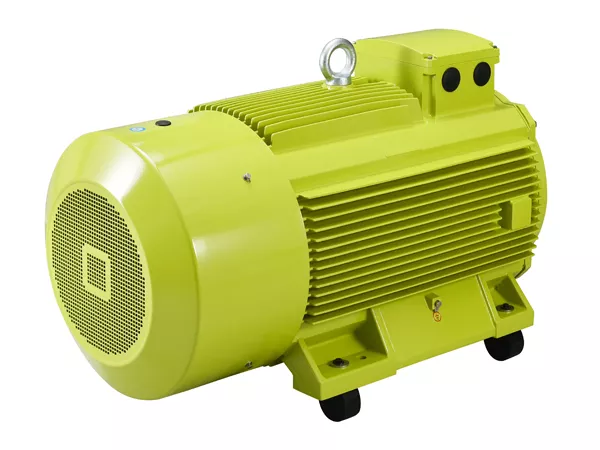

YVF Series Variable Frequency Speed Regulating Three-Phase Asynchronous Motor

YVF Series Variable Frequency Speed Regulating Three-Phase Asynchronous Motor

This series of products can completely replace VJTG, YVF2, YVF2 series low-voltage variable frequency speed regulating three-phase asynchronous motors.
We can also provide customized services according to your requirements.

Parameters:

The cooling method is: IC416, and its efficiency value complies with IE3 in GB/T32891.2-2019 "Efficiency Classification of Rotating Motors (IE Code) Part 2: Variable Speed AC Motors".

Send Mail Chat Now

Introduction
Parameters
Related Products
Leave Comments

Introduction

YVF series variable frequency speed regulating three-phase asynchronous motor is a variable frequency speed regulating three-phase asynchronous motor derived from YE3 series motor, which complies with GB/T755 "Quota and Performance of Rotating Motors". The cooling method is: IC416, and its efficiency value complies with IE3 in GB/T32891.2-2019 "Efficiency Classification of Rotating Motors (IE Code) Part 2: Variable Speed AC Motors". This series of products can completely replace VJTG, YVF2, YVF2 series low-voltage variable frequency speed regulating three-phase asynchronous motors.

Advantages:

Compared with other speed regulation methods, the speed regulation system composed of this series of variable frequency speed regulation three-phase asynchronous motors and frequency conversion devices has the following characteristics: significant energy saving effect, good speed regulation performance, wide speed regulation range, low noise, small vibration, and can be matched with various frequency converters at home and abroad.

Application:

Commonly used in fans, pumps, compressors and heating equipment, etc.

Package:

YE2 (7).webp

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

Type	Rated power(kw)	Rated voltage(v)	Rated current(A)	Rated speed(r/min)	Constant torque frequency conversion range(Hz)	Constant power frequency conversion range(Hz)	Rated torque(N.m)	Weight(kg)
Synchronous Speed 3000r/min
YVF-80M1-2	0.75	380	1.7	2880	5-50	50-100	2.4	20
YVF-80M2-2	1.1	380	2.4	2880	5-50	50-100	3.5	21
YVF-90S-2	1.5	380	3.2	2890	5-50	50-100	4.8	25
YVF-90L-2	2.2	380	4.6	2890	5-50	50-100	7	26
YVF-100L-2	3	380	6	2910	5-50	50-100	9.6	36
YVF-112M-2	4	380	7.8	2910	5-50	50-100	12.7	46
YVF-132S1-2	5.5	380	10.6	2945	5-50	50-100	17.5	61
YVF-132S2-2	7.5	380	14.4	2940	5-50	50-100	23.9	66
YVF-160M1-2	11	380	20.6	2950	5-50	50-100	35	127
YVF-160M2-2	15	380	27.9	2950	5-50	50-100	47.8	138
YVF-160L-2	18.5	380	34.2	2950	5-50	50-100	58.9	153
YVF-180M-2	22	380	40.5	2960	5-50	50-100	70	164
YVF-200L1-2	30	380	54.9	2970	5-50	50-100	95.5	233
YVF-200L2-2	37	380	67.4	2975	5-50	50-100	118	259
YVF-225M-2	45	380	80.8	2975	5-50	50-100	143	320
YVF-250M-2	55	380	98.5	2970	5-50	50-100	175	420
YVF-280S-2	75	380	134	2980	5-50	50-100	239	480
YVF-280M-2	90	380	160	2980	5-50	50-100	287	550
YVF-280L-2	110	380	195	2980	5-50	50-100	350	676
YVF-315S-2	110	380	195	2975	5-50	50-100	350	900
YVF-315M-2	132	380	234	2975	5-50	50-100	420	990
YVF-315L1-2	160	380	279	2975	5-50	50-100	509	1058
YVF-315L2-2	185	380	323	2975	5-50	50-100	589	1110
YVF-315L3-2	200	380	349	2975	5-50	50-100	637	1110
YVF-315L4-2	220	380	383	2975	5-50	50-100	700	1335
YVF-355M1-2	220	380	383	2980	5-50	50-100	700	1630
YVF-355M-2	250	380	436	2980	5-50	50-100	796	1700
YVF-355L1-2	280	380	488	2980	5-50	50-100	891	1820
YVF-355L2-2	315	380	549	2980	5-50	50-100	1003	1850
YVF-355L3-2	355	380	619	2980	5-50	50-100	1130	1890
YVF-4001-2	355	380	626	2985	5-50	50-100	1130	2665
YVF-4002-2	400	380	705	2985	5-50	50-100	1273	2730
YVF-4003-2	450	380	793	2985	5-50	50-100	1433	2775
YVF-4004-2	500	380	881	2985	5-50	50-100	1592	3320
YVF-4005-2	560	380	976	2985	5-50	50-100	1783	3580
YVF-4006-2	630	660	632	2985	5-50	50-100	2006	3660
Synchronous Speed 1500r/min
YVF-80M1-4	0.55	380	1.4	1435	5-50	50-100	3.5	18
YVF-80M2-4	0.75	380	1.8	1435	5-50	50-100	4.8	19
YVF-90S-4	1.1	380	2.6	1440	5-50	50-100	7	25
YVF-90L-4	1.5	380	3.5	1440	5-50	50-100	9.6	27
YVF-100L1-4	2.2	380	4.8	1450	5-50	50-100	14	29
YVF-100L2-4	3	380	6.3	1450	5-50	50-100	19.1	32
YVF-112M-4	4	380	8.4	1450	5-50	50-100	25.5	37
YVF-132S-4	5.5	380	11.2	1470	5-50	50-100	35	68
YVF-132M-4	7.5	380	15	1470	5-50	50-100	47.8	81
YVF-160M-4	11	380	21.5	1475	5-50	50-100	70	138
YVF-160L-4	15	380	28.8	1475	5-50	50-100	95.5	150
YVF-180M-4	18.5	380	35.3	1480	5-50	50-100	118	175
YVF-180L-4	22	380	41.8	1480	5-50	50-100	140	201
YVF-200L-4	30	380	56.6	1475	5-50	50-100	191	254
YVF-225S-4	37	380	69.6	1485	5-50	50-100	236	308
YVF-225M-4	45	380	84.4	1485	5-50	50-100	287	338
YVF-250M-4	55	380	103	1480	5-50	50-100	350	440
YVF-280S-4	75	380	136	1490	5-50	50-100	478	530
YVF-280M-4	90	380	163	1490	5-50	50-100	573	590
YVF-280L-4	110	380	195	1490	5-50	50-100	700	670
YVF-315S-4	110	380	197	1485	5-50	50-100	700	895
YVF-315M-4	132	380	236	1485	5-50	50-100	840	985
YVF-315L1-4	160	380	285	1485	5-50	50-100	1019	1165
YVF-315L2-4	185	380	326	1485	5-50	50-100	1178	1169
YVF-315L3-4	200	380	352	1485	5-50	50-100	1273	1169
YVF-315L4-4	220	380	387	1485	5-50	50-100	1401	1335
YVF-355M1-4	220	380	387	1490	5-50	50-100	1401	1660
YVF-355M2-4	250	380	440	1490	5-50	50-100	1592	1710
YVF-355L1-4	280	380	492	1490	5-50	50-100	1783	1780
YVF-355L2-4	315	380	554	1490	5-50	50-100	2006	1850
YVF-355L3-4	355	380	624	1490	5-50	50-100	2260	1890
YVF-4001-4	355	380	638	1490	5-50	50-100	2260	2880
YVF-4002-4	400	380	719	1490	5-50	50-100	2547	3010
YVF-4003-4	450	380	809	1490	5-50	50-100	2865	3040
YVF-4004-4	500	380	899	1490	5-50	50-100	3183	3495
YVF-4005-4	560	380	996	1490	5-50	50-100	3565	3590
YVF-4006-4	630	660	645	1490	5-50	50-100	4011	3710
Synchronous Speed 1000r/min
YVF-80M1-6	0.37	380	1.1	928	5-50	50-100	3.5	28
YVF-80M2-6	0.55	380	1.5	928	5-50	50-100	5.3	29
YVF-90S-6	0.75	380	2	950	5-50	50-100	7.2	32
YVF-90L-6	1.1	380	2.8	950	5-50	50-100	10.5	34
YVF-100L1-6	1.5	380	3.8	955	5-50	50-100	14.3	42
YVF-112M-6	2.2	380	5.4	955	5-50	50-100	21	47
YVF-132S-6	3	380	7.2	970	5-50	50-100	28.7	60
YVF-132M1-6	4	380	9.5	970	5-50	50-100	38.2	71
YVF-132M2-6	5.5	380	12.7	970	5-50	50-100	52.5	81
YVF-160M-6	7.5	380	16.2	980	5-50	50-100	71.6	125
YVF-160L-6	11	380	23.1	980	5-50	50-100	105	152
YVF-180L-6	15	380	30.9	980	5-50	50-100	143	184
YVF-200L1-6	18.5	380	37.8	985	5-50	50-100	177	232
YVF-200L2-6	22	380	44.8	985	5-50	50-100	210	248
YVF-225M-6	30	380	59.1	990	5-50	50-100	287	303
YVF-250M-6	37	380	71.7	990	5-50	50-100	353	382
YVF-280S-6	45	380	85.8	990	5-50	50-100	430	518
YVF-280M-6	55	380	103	990	5-50	50-100	525	597
YVF-280L-6	75	380	143	990	5-50	50-100	716	730
YVF-315S-6	75	380	143	990	5-50	50-100	716	835
YVF-315M-6	90	380	170	990	5-50	50-100	860	925
YVF-315L1-6	110	380	207	990	5-50	50-100	1051	1085
YVF-315L2-6	132	380	244	990	5-50	50-100	1261	1235
YVF-315L3-6	160	380	296	990	5-50	50-100	1528	1335
YVF-355M1-6	160	380	296	990	5-50	50-100	1528	1660
YVF-355M2-6	185	380	342	990	5-50	50-100	1767	1710
YVF-355M3-6	200	380	365	990	5-50	50-100	1910	1780
YVF-355L1-6	220	380	401	990	5-50	50-100	2101	1860
YVF-355L2-6	250	380	456	990	5-50	50-100	2388	1950
YVF-355L3-6	280	380	510	990	5-50	50-100	2674	1990
YVF-4001-6	315	380	609	995	5-50	50-100	3008	2870
YVF-4002-6	355	380	687	995	5-50	50-100	3390	2980
YVF-4003-6	400	380	764	995	5-50	50-100	3820	3380
YVF-4004-6	450	380	860	995	5-50	50-100	4298	3540
Synchronous Speed 1500r/min
hi	0.18	380	0.8	650	5-50	50-100	2.3	29
YVF-80M2-8	0.25	380	1	650	5-50	50-100	3.2	34
YVF-90S-8	0.37	380	1.3	670	5-50	50-100	4.7	38
YVF-90L-8	0.55	380	1.9	670	5-50	50-100	7	44
YVF-100L1-8	0.75	380	2.3	690	5-50	50-100	9.6	47
YVF-100L2-8	1.1	380	3.1	690	5-50	50-100	14	48
YVF-112M-8	1.5	380	4.1	690	5-50	50-100	19.1	49
YVF-132S-8	2.2	380	5.7	710	5-50	50-100	28	59
YVF-132M-8	3	380	7.5	710	5-50	50-100	38.2	72
YVF-160M1-8	4	380	9.8	720	5-50	50-100	50.9	121
YVF-160M2-8	5.5	380	13.1	720	5-50	50-100	70	136
YVF-160L-8	7.5	380	17.4	720	5-50	50-100	95.5	143
YVF-180L-8	11	380	25.2	730	5-50	50-100	140	172
YVF-200L-8	15	380	33.5	730	5-50	50-100	191	221
YVF-225S-8	18.5	380	41	730	5-50	50-100	236	262
YVF-225M-8	22	380	47.3	730	5-50	50-100	280	294
YVF-250M-8	30	380	63.2	730	5-50	50-100	382	405
YVF-280S-8	37	380	77.5	740	5-50	50-100	471	477
YVF-280M-8	45	380	93.9	740	5-50	50-100	573	542
YVF-280L-8	55	380	112	740	5-50	50-100	700	650
YVF-315S-8	55	380	112	740	5-50	50-100	700	1025
YVF-315M-8	75	380	151	740	5-50	50-100	955	1030
YVF-315L1-8	90	380	179	740	5-50	50-100	1146	1105
YVF-315L2-8	110	380	218	740	5-50	50-100	1401	1185
YVF-315L3-8	132	380	260	740	5-50	50-100	1681	1370
YVF-355M1-8	132	380	260	740	5-50	50-100	1681	1610
YVF-355M2-8	160	380	314	740	5-50	50-100	2037	1720
YVF-355L1-8	185	380	362	740	5-50	50-100	2356	1870
YVF-355L2-8	200	380	387	740	5-50	50-100	2547	1970
YVF-355L3-8	220	380	426	740	5-50	50-100	2801	2010
YVF-4001-8	250	380	502	740	5-50	50-100	3183	2840
YVF-4002-8	315	380	632	740	5-50	50-100	4011	3030
YVF-4003-8	355	380	713	745	5-50	50-100	4520	3610
