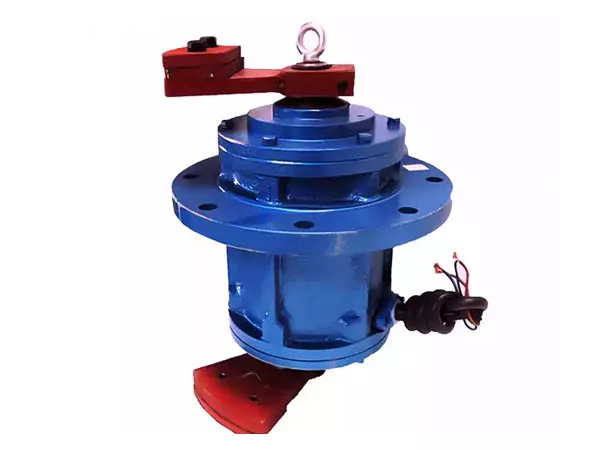

YZUL Series Three Phase Vertical Vibration Motor

YZUL Series Three Phase Vertical Vibration Motor

We can also provide customized services according to your requirements.

Parameters:

Output Range: 0.12KW~10KW
Vibration Force: 1Kn-125Kn
Voltage: 380V/415V/660V/Customize
Frequency: 50Hz/60Hz/as required

Send Mail Chat Now

Introduction
Parameters
Related Products
Leave Comments

Introduction

YZUL vertical vibration motor is a new type of vertical motor designed based on the operating characteristics of the vibrating screen, which can completely upgrade and replace the vibration mode of the old vibration. YZUL series vertical vibration motor adopts the world's most advanced single flange structure, with exquisite design, safe and reliable operation and high durability.

YZUL Series Vertical Vibration Motor Advantages:

1. Low noise and energy.High efficiency.

2. Small volume,light weight,quick set-up .

3. Easy installation,simple maintenance and long working life

4. Stepless adjustment of exciting force and wide range of adjustment.Vibration transmit without machine.

YZUL Series Vertical Vibration Motor Application:

YZUL series vertical vibration motor, three-phase asynchronous motor or induction motor, is vibration source of all types of general-purpose machinery.

Such as vibrating feeder, vibrating conveyor, vibrating dryer, vibrating screen, vibrating hopper and vibration platform. It can be widely used in electricity,

building materials, grain, coal, mining, metallurgy, chemical, cement and other industries.

YZUL Series Vertical Vibration Motor Type Identifiers:


Installation Dimension:

下载 (1).webp

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

YZUL Series Three Phase Vertical Vibrator Motor Patameters
No.	Type	FC	P2	IN	Dimension								Weight	Fig.	φD
No.	Type	kN	kW	A	φA	φB	φC	L	E	B	R	N-φK	kg	Fig.	φD
2 Poles 50Hz/60Hz 3000rpm/3600rpm
1	YZUL-5-2	5	0.4KW	0.9	245	210	150	278	67	18	72	6月12日	24	Fig.11	285.5
2	YZUL-8-2	8	0.55KW	1.2	270	240	164	273	67	20	82	6月14日	30	Fig.1
3	YZUL1-20-2	20	1.5KW	3	370	320	210	425	203	25	94	6月22日	72	Fig.2
4 Poles 50Hz/60Hz 1500rpm/1800rpm
1	YZUL-1-4	1	0.12KW	0.4	190	165	126	220	54	16	68	4月12日	15	Fig.1
2	YZUL-3-4	3	0.12KW	0.4	230	200	126	268	78	16	78	4月12日	15	Fig.1
3	YZUL-5-4	5	0.25KW	0.7	245	210	150	270	76	18	90	6月12日	25	Fig.1
4	YZUL-8-4	8	0.37KW	0.86	270	240	164	302	81	20	103	6月14日	36	Fig.1
5	YZUL1-8-4	8	0.37KW	0.86	268	230	160	326	145	24	105	4月18日	35	Fig.2	160
6	YZUL-10-4	10	0.55KW	1.25	310	265	190	343	104	22	130	8月18日	44	Fig.1
7	YZUL-16-4	16	0.75KW	1.68	310	265	190	365	112	24	135	8月18日	48	Fig.1
8	YZUL1-16-4	16	0.75KW	1.68	268	230	180	350	134	24	115	4月18日	39	Fig.2	180
9	YZUL1-20-4	20	1.1KW	2.38	370	320	210	456	218	25	141	6月22日	80	Fig.2	285.5
10	YZUL1-25-4	25	1.5KW	3.2	370	320	210	470	225	25	141	6月22日	88	Fig.2	285.5
11	YZUL1-32-4	32	1.5KW	3.2	370	320	210	495	238	25	151	6月22日	87	Fig.2	285.5
12	YZUL1-35-4	35	1.8KW	3.78	370	320	210	556	258	25	141	6月22日	96	Fig.2	285.5
13	YZUL1-50-4	50	2.2KW	4.7	500	440	330	533	262	30	175	8月26日	168	Fig.2	368
14	YZUL1-50-4A	50	2.5KW	5.4	500	440	330	504	233	30	200	8月26日	158	Fig.2	368
15	YZUL1-65-4	65	5KW	10.4	500	440	330	659	356	32	175	8月26日	221	Fig.2	368
16	YZUL1-75-4	75	3.7KW	7.64	610	525	380	663	320	40	170	6-38	286	Fig.2	420
17	YZUL1-75-4A	75	5.5KW	11	610	525	380 380	631	322	40	215	6-38	299	Fig.2	420
18	YZUL1-100-4	100	7.5KW	16.2	610	525	380	711	347	40	180	6-38	366	Fig.2	420
19	YZUL1-125-4	125	10KW	19.6	610	495	420	737	390	50	245	8-38	442	Fig.2	420
