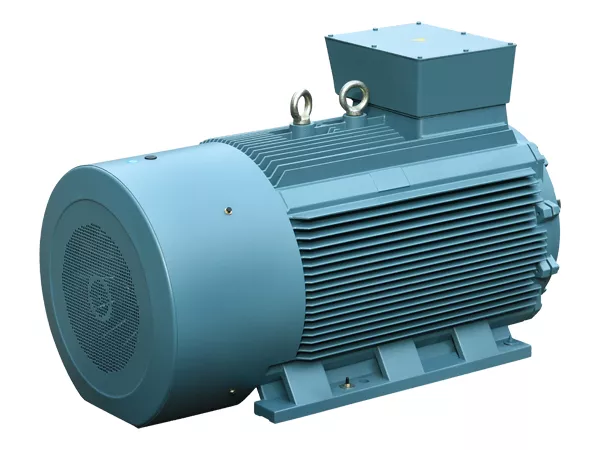

IE2/YE2 Series High Efficient Three-Phase Asynchronous Motor
IE2/YE2 Series High Efficient Three-Phase Asynchronous Motor
IE2/YE2 Series High Efficient Three-Phase Asynchronous Motor
IE2/YE2 Series High Efficient Three-Phase Asynchronous Motor

IE2/YE2 Series High Efficient Three-Phase Asynchronous Motor

IE2 efficiency class three-phase asynchronous motor.
We can also provide customized services according to your requirements.
Parameters:

Power range: 0.37kw-630kw (Customizable).
Voltage: 380V (Customizable).
Frequency: 50Hz (or 60Hz)
We also have YE2/YE3/YE4/YE5.

Send Mail Chat Now
Introduction

Yaan Electric Power YE2 series three-phase asynchronous motors fully comply with the relevant provisions of GB/T25290-2010 and IEC34-1 standards, and

have the characteristics of high efficiency and energy saving, low noise, low vibration, high insulation level, good protection performance, and flexible

installation.



Advantages:

1.IE2 efficiency class three-phase asynchronous motor.

2.Power range 0.37kw-630kw.

3.100% copper stator.

4.High-quality bearings support the rotor to rotate smoothly.

5.F-class insulation class (155℃), B-class (80K) insulation class.

6.IP55 protection class.

7.Compact structure, small footprint, easy to install and maintain.

Operating conditions:

Ambient temperature: -15°C ≤ 0 ≤ 40 ℃

Altitude: not more than 1000m

Rated voltage: 380V or any voltage between 220-760V

Rated frequency: 50Hz, 60Hz

Protection class: IP55

Insulation class: F, H

Cooling method: ICO141

Duty cycle: S1 (continuous)

Connection: star connection up to 3kw, delta connection for 4kw and above.

Mounting Type:

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

Type KW HP rotate speed (r/mln) current IN (A) efficiency n(%) Power factor (cosØ) Stall current Rated current Ist/TN Stall torque Rated torque Tst/TN Maximum torque Rated torque Tmax/TN
                                                                                              Synchronous Speed 3000 rpm
YE2-63M1-2 0.18 0.25 2720 0.53 65 0.8 5.5 2.2 2.2
YE2-63M2-2 0.25 0.34 2720 0.69 68 0.81 5.5 2.2 2.2
YE2-71M1-2 0.37 0.5 2740 0.99 70 0.81 6.1 2.2 2.2
YE2-71M2-2 0.55 0.75 2740 1.4 73 0.82 6.1 2.2 2.3
YE2-80M1-2 0.75 1 2835 1.83 77.4 0.83 6.1 2.2 2.3
YE2-80M2-2 1.1 1.5 2835 2.58 79.6 0.84 7 2.2 2.3
YE2-90S-2 1.5 2 2845 3.43 81.3 0.84 7 2.2 2.3
YE2-90L-2 2.2 3 2845 4.85 83.2 0.85 7 2.2 2.3
YE2-100L-2 3 4 2875 6.31 84.6 0.87 7.5 2.2 2.3
YE2-112M-2 4 5.5 2895 8.1 85.8 0.88 7.5 2.2 2.3
YE2-132S1-2 5.5 7.5 2905 11 87 0.88 7.5 2.2 2.3
YE2-132S2-2 7.5 10 2905 14.9 88.1 0.88 7.5 2.2 2.3
YE2-160M1-2 11 15 2935 21.3 89.4 0.89 7.5 2.2 2.3
YE2-160M2-2 15 20 2935 28.8 90.3 0.89 7.5 2.2 2.3
YE2-160L-2 18.5 25 2935 34.7 90.9 0.9 7.5 2.2 2.3
YE2-180M-2 22 30 2945 41 91.3 0.9 7.5 2 2.3
YE2-200L1-2 30 40 2955 55.5 92 0.9 7.5 2 2.3
YE2-200L2-2 37 50 2955 67.9 92.5 0.9 7.5 2 2.3
YE2-225M-2 45 60 2975 82.3 92.9 0.9 7.5 2 2.3
YE2-250M-2 55 75 2975 101 93.2 0.9 7.5 2 2.3
YE2-280S-2 75 100 2975 134 93.8 0.9 7.5 2 2.3
YE2-280M-2 90 125 2975 160 94.1 0.91 7.5 2 2.3
YE2-315S-2 110 150 2980 195 94.3 0.91 7.1 1.8 2.2
YE2-315M-2 132 180 2980 233 94.6 0.91 7.1 1.8 2.2
YE2-315L1-2 160 200 2980 279 94.8 0.92 7.1 1.8 2.2
YE2-315L2-2 200 270 2980 348 95 0.92 7.1 1.8 2.2
YE2-355M-2 250 340 2980 433 95 0.92 7.1 1.6 2.2
YE2-355L-2 315 430 2980 544 95 0.92 7.1 1.6 2.2
YE2-400M1-2 355 475 2975 618 95.9 0.91 5.8 1.23 2.53
YE2-400M2-2 400 535 2982 689 96 0.92 5.74 1.31 2.43
YE2-400M3-2 450 600 2982 775 96.1 0.92 7.27 1.83 2.98
YE2-400L1-2 500 670 2982 853 96.3 0.92 6.14 1.2 2.9
YE2-400L2-2 560 750 2982 952 96.3 0.92 5.46 0.98 2.57
                                                                                               Synchronous Speed 1500  rpm
YE2-63M1-4 0.12 0.17 1310 0.44 57 0.72 4.4 2.1 2.2
YE2-63M2-4 0.18 0.25 1310 0.62 60 0.73 4.4 2.1 2.2
YE2-71M1-4 0.25 0.34 1330 0.79 65 0.75 5.2 2.1 2.2
YE2-71M2-4 0.37 0.5 1330 1.12 67 0.74 5.2 2.1 2.2
YE2-80M1-4 0.55 0.75 1395 1.57 71 0.75 5.2 2.4 2.3
YE2-80M2-4 0.75 1 1395 2.03 79.6 0.76 6 2.3 2.3
YE2-90S-4 1.1 1.5 1405 2.89 81.4 0.77 6 2.3 2.3
YE2-90L-4 1.5 2 1405 3.7 82.8 0.79 6 2.3 2.3
YE2-100L1-4 2.2 3 1435 5.16 84.3 0.81 7 2.3 2.3
YE2-100L2-4 3 4 1435 6.78 85.5 0.82 7 2.3 2.3
YE2-112M-4 4 5.5 1445 8.8 86.6 0.82 7 2.3 2.3
YE2-132S-4 5.5 7.5 1445 11.7 87.7 0.83 7 2.3 2.3
YE2-132M-4 7.5 10 1445 15.6 88.7 0.84 7 2.3 2.3
YE2-160M-4 11 15 1460 22.3 89.8 0.84 7 2.2 2.3
YE2-160L-4 15 20 1460 30.1 90.6 0.85 7.5 2.2 2.3
YE2-180M-4 18.5 25 1470 36.5 91.2 0.86 7.5 2.2 2.3
YE2-180L-4 22 30 1470 43.2 91.6 0.86 7.5 2.2 2.3
YE2-200L-4 30 40 1470 57.6 92.3 0.86 7.2 2.2 2.3
YE2-225S-4 37 50 1485 69.9 92.7 0.87 7.2 2.2 2.3
YE2-225M-4 45 60 1485 84.7 93.1 0.87 7.2 2.2 2.3
YE2-250M-4 55 75 1485 103 93.5 0.87 7.2 2.2 2.3
YE2-280S-4 75 100 1485 140 94 0.87 7.2 2.2 2.3
YE2-280M-4 90 125 1490 167 94.2 0.87 7.2 2.2 2.3
YE2-315S-4 110 150 1490 201 94.5 0.88 6.9 2.1 2.2
YE2-315M-4 132 180 1490 240 94.7 0.88 6.9 2.1 2.2
YE2-315L1-4 160 200 1490 287 94.9 0.89 6.9 2.1 2.2
YE2-315L2-4 200 270 1490 359 95.1 0.89 6.9 2.1 2.2
YE2-355M-4 250 340 1485 443 95.1 0.9 6.9 2.1 2.2
YE2-355L-4 315 430 1485 556 95.1 0.9 6.9 2.1 2.2
YE2-400M1-4 355 475 1490 641 95.5 0.88 6.5 2.6 1.93
YE2-400M2-4 400 535 1490 723 95.5 0.88 6.5 2.75 1.8
YE2-400M3-4 450 600 1490 804 95.5 0.89 6.5 2.81 2.03
YE2-400L1-4 500 670 1490 893 95.6 0.89 6.61 2.52 1.83
YE2-400L2-4 560 750 1490 971 96 0.89 6.6 2.67 2.02
                                                                                                Synchronous Speed 960rpm
YE2-71M1-6 0.18 0.25 850 0.74 56 0.66 4 1.9 2
YE2-71M2-6 0.25 0.34 850 0.95 59 0.68 4 1.9 2
YE2-80M1-6 0.37 0.5 890 1.3 62 0.7 4.7 1.9 2
YE2-80M2-6 0.55 0.75 89o 1.79 65 0.72 4.7 1.9 2.1
YE2-90S-6 0.75 1 915 2.29 75.9 0.72 5.5 2 2.1
YE2-90L-6 1.1 1.5 915 3.18 78.1 0.73 5.5 2 2.1
YE2-100L-6 1.5 2 945 3.94 79.8 0.75 5.5 2 2.1
YE2-112M-6 2.2 3 945 5.6 81.8 0.76 6.5 2 2.1
YE2-132s-6 3 4 965 7.4 83.3 0.76 6.5 2.1 2.1
YE2-132M1-6 4 5.5 965 9.8 84.6 0.76 6.5 2.1 2.1
YE2-132M2-6 5.5 7.5 965 12.9 86 0.77 6.5 2.1 2.1
YE2-160M-6 7.5 10 975 17 87.,2 0.78 6.5 2 2.1
YE2-160L-6 11 15 975 24.2 88.7 0.81 7 2 2.1
YE2-180L-6 15 20 975 31.6 89.7 0.81 7 2 2.1
YE2-200L1-6 18.5 25 975 38.6 90.4 0.83 7 2.1 2.1
YE2-200L2-6 22 30 975 44.7 90.9 0.84 7 2.1 2.1
YE2-225M-6 3o 40 980 59.3 91.7 0.86 7 2 2.1
YE2-250M-6 37 50 98o 71 92.2 0.86 7 2.1 2.1
YE2-280S-6 45 6o 98o 86 92.7 0.86 7 2.1 2
YE2-280M-6 55 75 98o 105 93.1 0.86 7 2.1 2
YE2-315S-6 75 100 980 141 93.7 0.86 7 2 2
YE2-315M-6 9o 125 98o 169 94 0.86 7 2 2
YE2-315L1-6 110 150 980 206 94.3 0.86 6.7 2 2
YE2-315L2-6 132 180 98o 244 94.6 0.87 6.7 2 2
YE2-355M1-6 160 20o 985 292 94.8 0.88 6.7 1.9 2
YE2-355M2-6 200 270 985 365 95 0.88 6.7 1.9 2
YE2-355L-6 250 340 985 455 95 0.88 6.7 1.9 2
YE2-400M1-6 280 38o 99o 510 95.8 0.87 5.9 2.3 1.8
YE2-400M2-6 315 430 99o 574 95.8 0.87 5.9 2.3 1.8
YE2-400M3-6 355 475 99o 638 95.8 0.87 5.9 2.3 1.8
YE2-400L1-6 4o0 535 99o 719 96 0.88 6.3 2.3 1.8
YE2-400L2-6 450 60o 99o 796 96.5 0.89 6.3 2.3 1.8
                                                                                               Synchronous Speed 750 rpm
YE2-80M1-8 0.18 o.25 630 0.88 51 0.61 3.3 1.8 1.9
YE2-80M2-8 0.25 0.34 640 1.15 54 0.61 3.3 1.8 1.9
YE2-90S-8 0.37 0.5 66o 1.49 62 0.61 4 1.8 1.9
YE2-90L-8 0.55 0.75 66o 2.18 63 0.61 4 1.8 2
YE2-100L1-8 0.75 1 680 2.39 71 0.67 4 1.8 2
YE2-10oL2-8 1.1 1.5 680 3.32 73 0.69 5 1.8 2
YE2-112M-8 1.5 2 69o 4.5 75 0.69 5 1.8 2
YE2-132S-8 2.2 3 69o 6 78 0.71 6 1.8 2
YE2-132M-8 3 4 710 7.9 79 0.73 6 1.8 2
YE2-160M1-8 4 5.5 710 10.3 81 0.73 6 1.9 2
YE2-160M2-8 5.5 7.5 720 13.6 83 0.74 6 2 2
YE2-160L-8 7.5 10 720 17.8 85.5 0.75 6 2 2
YE2-180L-8 11 15 730 25.1 87.5 0.76 6.6 2 2
YE2-200L-8 15 20 730 34.1 88 0.76 6.6 2 2
YE2-225s-8 18.5 25 730 40.6 9o 0.76 6.6 1.9 2
YE2-225M-8 22 3o 740 47.4 90.5 0.78 6.6 1.9 2
YE2-250M-8 30 40 740 64 91 0.79 6.6 1.9 2
YE2-280S-8 37 50 740 78 91.5 0.79 6.6 1.9 2
YE2-280M-8 45 6o 740 94 92 0.79 6.6 1.9 2
YE2-315S-8 55 75 740 111 92.8 0.81 6.6 1.8 2
YE2-315M-8 75 100 740 151 93 0.81 6.6 1.8 2
YE2-315L1-8 9o 125 740 178 93.8 0.82 6.6 1.8 2
YE2-315L2-8 110 15o 740 217 94 0.82 7.2 1.8 2
YE2-355M1-8 132 180 740 261 93.7 0.82 7.2 1.8 2
YE2-355M2-8 160 200 740 315 94.2 0.82 7.2 1.8 2
YE2-355L-8 200 270 740 388 94.5 0.83 7.2 1.8 2
YE2-400M1-8 250 340 745 494 95 0.81 6.2 2.3 1.8
YE2-400M2-8 280 380 745 552 95 0.82 6.2 2.3 1.8
YE2-400L1-8 315 430 745 592 95 0.85 6.2 2.3 1.8
YE2-400L2-8 355 475 745 692 95 0.85 6.2 2.3 1.8
YE2-400L3-8 400 535 745 780 95 0.85 6.2 2.3 1.8
                                                                                               Synchronous Speed 600rpm
YE2-315S-10 45 60 590 100 91.5 0.75 6.2 1.5 2
YE2-315M-10 55 75 590 121 92 0.75 6.2 1.5 2
YE2-315L1-10 75 100 590 162 92.5 0.76 6.2 1.5 2
YE2-315L2-10 90 125 590 191 93 0.77 6.2 1.5 2
YE2-355M1-10 110 150 590 230 93.2 0.78 6 1.3 2
YE2-355M2-10 132 180 590 275 93.5 0.78 6 1.3 2
YE2-355L-10 160 200 590 334 93.5 0.78 6 1.3 2
YE2-400M1-10 200 270 595 404 95 0.8 6.2 2.6 1.8
YE2-400M2-10 250 340 595 495 95 0.81 6.2 2.6 1.8
YE2-400L1-10 280 380 595 554 95 0.82 6.2 2.6 1.8
YE2-400L2-10 315 430 595 630 95 0.82 6.2 2.6 1.8
