YEJ series dc brake, designed according to IEC standard, are totally-enclosed, fan-coolde, squirrel-cage three-phase asynchronous motors with additional electromagnetic brake disc dc direct current.

Parameters:

Ambient temperature: 15℃≤8≤40℃
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 400V, 415V
Duty/Rating: Continuous(S1)
Rated frequency: 50Hz/60Hz

Send Mail Chat Now

Introduction
Parameters
Related Products
Leave Comments

Introduction

YEJ series dc brake, designed according to IEC standard, are totally-enclosed, fan-coolde, squirrel-cage three-phase asynchronous motors with additional electromagnetic brake disc dc direct current.

The motor with removable feet, is made of aluminum-alloy cite-casting various mounting models available.It has a lot of advantages including beautiful modeling,compact structure, high efficiency, low nise, low vibration, etc.The brake has a manual and electrical release.

Operating Conditons:
Ambient temperature:15℃≤8≤40℃
Altitude: Not exceeding 1000 meters
Rated voltage:380V,400V.415V
Duty/Rating:Continuous(S1)
Rated frequency:50Hz/60Hz
Connection:DC 99V for electromagnetic brake with power less than or equal
Insulation class: Class B/F/H
3KW And DC 170V for brakes with power more than or equal to 4KW

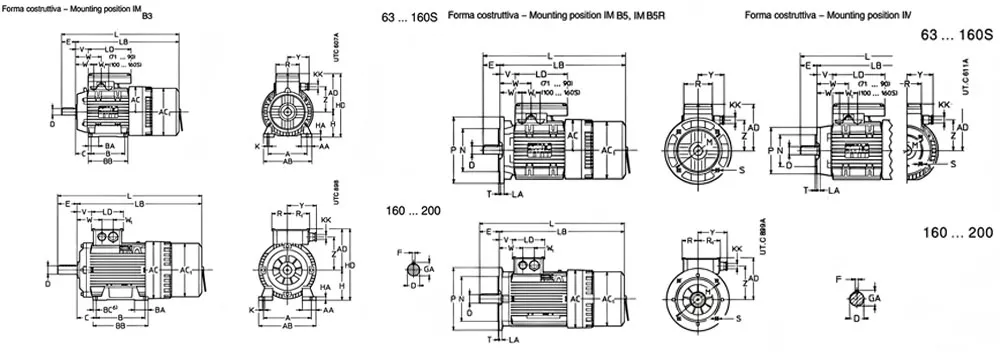

Mounting Type:

Parameters

If the table display is incomplete, swipe left and right to view the table.

Due to the large number of model types and parameter information, please click to contact us for specific demand information. I can recommend a suitable motor model for you.

YEJ Brake motor parameters information
TYPE	Rate Power (KW)	Full Load				Locked Torque	Locked Current	Max.Torque	Resting Torque no less than N.m.	Exciting Voltage UF (V)	Inertia Torque Gd (kg.m²)	No load brake time no more than (S)
TYPE	Rate Power (KW)	Speed (r/min)	Current (A)	Eff(%)	P.F(cos)	Rated Torque Ist/In	Rated Current Tstart/Tn	Rated Torque Tmin/Tn	Resting Torque no less than N.m.	Exciting Voltage UF (V)	Inertia Torque Gd (kg.m²)	No load brake time no more than (S)
YEJ801-2	0.75	2825	1.9	73	0.84	7	2.2	2.2	7.36	100	0.00428	0.2
YEJ802-2	1.1	2825	2.6	76	0.86	7	2.2	2.2	7.36	100	0.00496	0.2
YEJ908-2	1.5	2840	3.4	79	0.85	7	2.2	2.2	14.7	100	0.0074	0.25
YEJ90L-2	2.2	2840	4.7	82	0.86	7	2.2	22	14.7	100	0.00933	0.25
YEJ100L-2	3	2880	6.4	82	0.87	7	2.2	2.2	29.4	100	0.01064	0.3
YEJ112M-2	4	2890	8.2	85.5	0.87	7	2.2	2.2	39.2	170	0.03199	0.35
YEJ13281-8	5.5	2900	11.1	86.2	0.88	7	2.2	2.2	73.6	170	0.06434	0.4
YEJ13282-8	7.5	2900	15	86.2	0.88	7	2.2	2.2	73.6	170	0.0724	0.4
YEJ160M1-2	11	2930	21.8	87.2	0.88	7	2.2	2.2	147.2	170	0.22853	0.5
YEJ160M2-2	15	2930	29.4	88.2	0.88	7	2.2	2.2	147.2	170	0.26623	0.5
YEJ160L-2	18.5	2930	35.5	89	0.89	7	2.2	2.2	147.2	170	0.316	0.5
YEJ180M-2	22	2940	42.2	89	0.89	7	2.2	2.2	215.8	170	0.37637	0.6
YEJ200L1-2	30	2950	56.9	90	0.89	7	2.2	2.2	294.3	170	0.739	0.7
YEJ200L2-2	37	2950	69.8	90.5	0.89	7	2.2	2.2	294.3	170	0.8181	0.7
YEJ225M-2	45	2970	83.9	91.5	0.89	7	2.2	2.2	441.5	170	1.269	0.8
YEJ801-4	0.55	1390	1.6	70.5	0.76	6.5	2.2	2.2	7.36	100	0.00866	0.2
YEJ802-4	0.75	1390	2.1	72.5	0.76	6.5	2.2	2.2	7.36	100	0.01073	0.2
YEJ908-4	1.1	1400	2.7	79	0.78	6.5	2.2	2.2	14.7	100	0.01132	0.25
YEJ90L-4	1.5	1400	3.7	79	0.79	6.5	2.2	2.2	14.7	100	0.0143	0.25
YEJ100L1-4	2.2	1420	5	81	0.82	7	2.2	22	29.4	100	0.02733	0.3
YEJ100L2-4	3	1420	6.8	82.5	0.81	7	2.2	2.2	29.4	100	0.03506	0.3
YEJ112M-4	4	1440	8.8	84.5	0.82	7	2.2	22	39.2	170	0.04969	0.35
YEJ132S-4	5.5	1440	11.6	85.5	0.84	7	2.2	22	73.6	170	0.11584	0.4
YEJ132M-4	7.5	1440	15.4	87	0.85	7	2.2	22	73.6	170	0.15404	0.4
YEJ160M-4	11	1460	22.6	88	0.84	7	2.2	22	147.2	170	0.3986	0.5
YEJ160L-4	15	1460	30.3	88.5	0.85	7	2.2	22	147.2	170	0.68288	0.5
YEJ180M-4	18.5	1470	35.9	91	0.86	7	2.2	2.2	215.8	170	0.68667	0.6
YEJ180L-4	22	1470	42.5	91.5	0.86	7	2.2	22	215.8	170	0.7677	0.6
YEJ200L-4	30	1470	56.8	92.5	0.87	7	2.2	22	294.3	170	1.3963	0.7
YEJ2258-4	37	1480	69.8	91.8	0.87	7	2.2	22	414.5	170	2.158	0.8
YEJ225M-4	45	1480	84.2	92.3	0.88	7	2.2	22	441.5	170	2.463	0.8
YEJ908-6	0.75	910	2.3	72.5	0.7	6	2	2.2	14.7	100	0.01514	0.25
YEJ90L-6	1.1	910	3.2	73.5	0.72	6	2	2	14.7	100	0.01815	0.25
YEJ100L-6	1.5	940	4	77.5	0.74	6	2	2	29.4	100	0.03573	0.3
YEJ112M-6	2.2	940	5.6	80.5	0.74	6	2	2	39.2	170	0.07639	0.35
YEJ1328-6	3	960	7.2	83	0.76	6.5	2	2	73.6	170	0.15437	0.4
YEJ132M1-6	4	960	9.4	84	0.77	6.5	2	2	73.6	170	0.1906	0.4
YEJ132M2-6	5.5	960	12.6	85.3	0.78	6.5	2	2	73.6	170	0.2384	0.4
YEJ160M-6	7.5	970	17	86	0.78	6.5	2	2	147.2	170	0.45813	0.5
YEJ160L-6	11	970	24.6	86	0.78	6.5	2	2	147.2	170	0.59078	0.5
YEJ180L6	15	970	31.4	89.5	0.81	6.5	1.8	2	215.8	170	0.9919	0.6
YEJ200L1-6	18.5	970	37.7	89.8	0.83	6.5	1.8	2	294.3	170	1.6609	0.7
YEJ200L2-6	22	970	44.6	90.2	0.83	6.5	1.8	2	294.3	170	1.838	0.7
YEJ225M-6	30	980	59.5	90.2	0.85	6.5	1.8	2	441.5	170	2.639	0.8
YEJ1325-8	2.2	710	5.8	81	0.71	5.5	2	2	73.6	170	0.15534	0.4
YEJ132M-8	3	710	7.7	82	0.72	5.5	2	2	73.6	170	0.19184	0.4
YEJ160M1-8	4	720	9.9	84	0.73	6	2	2	147.2	170	0.37563	0.5
YEJ160M2-8	5.5	720	13.3	85	0.74	6	2	2	147.2	170	0.4714	0.5
YEJ160L-8	7.5	720	17.3	86	0.75	5.5	2	2	147.2	170	0.60538	0.5
YEJ180L-8	10	730	17.7	86.5	0.77	6	1.7	2	215.8	170	0.9636	0.6
YEJ200L8	15	730	34.1	88	0.76	6	1.8	2	294.3	170	1.194	0.7
YEJ225S-8	18.5	730	41.3	89.5	0.76	6	1.7	2	441.5	170	2.299	0.8
YEJ225M-8	22	730	47.6	90	0.78	6	1.8	2	441.5	170	2.436	0.8
